Optical Breadboard - 12" x 18" x 12" x 2.3" - Ferromagnetic Steel

<< Previous in Breadboards --(Special) Next in Breadboards --(Special) >>

Our Price: $1,180.00
Sale Price: $1,062.00
You Save: $118.00 (10 %)
Lead time: 4 - 6 weeks
Item Number: 12182e2FM12L
Manufacturer: Vere
Manufacturer Part No: 12182e2FM12L
Free Std. Shipping to the 48 contiguous US states - Online items only
free shipping on sale

Quantity Discounts

QuantityAmount
5 to 10$1,008.90
11 or more$955.80

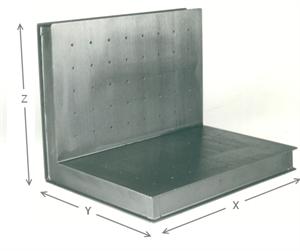

This unique style is "L" shaped with both a vertical and horizontal grid pattern.   Eliminates the need for large right angle brackets.

X = 18"
Y = 12"
Z = 12"

Utizing  2" Thick Honeycomb core for dampening, both vertically and horizontally.

VERE Optical Breadboards are 1/8" thick Ferromagnetic Steel skins laminated to a nonmetallic honeycomb core.  The core has 3/8" honeycomb cells with inherent broadband energy absorption, eliminating the need for additional internal dampers to suppress the resonance found in metal cores. Holes are sealed with a polymeric film that punctures when used, allowing the full depth of the breadboard to be used.  Flatness: 0.007" over 1' cumulative distance.  Entire breadboard coated in a black anti-reflective finish.  Self damping side panels.

Featuring 1/4-20 holes on a "Cost Saving" Grid spaced 2"center to center.
