Optical Breadboard 24" x 24" x 2.5" with Aluminum Top / Bottom

<< Previous in Aluminum Next in Aluminum >>

Our Price: $592.00
1 - Available Today
Item Number: 24242e2ALP
Manufacturer: Vere
Free Std. Shipping to the 48 contiguous US states
free shipping

Quantity Discounts

QuantityAmount
5 to 10$562.40
11 or more$532.80
VERE Optical Breadboards are 3/16" thick ALUMINUM skins laminated to a nonmetallic honeycomb core.  The core has 3/8" honeycomb cells with inherent broadband energy absorption, eliminating the need for additional internal dampers to suppress the resonance found in metal cores. The breadboard is coated in an anti-reflective black finish.

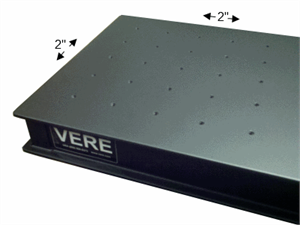

This unit has Tapped 1/4-20 Holes with a 2" CTC (Center to Center)grid pattern.


General specifications:

Flatness: 0.007" over 1' cumulative distance.

Core: 2” thick, vertically bonded, non-metallic, 3/8" honeycomb cell with inherent broadband energy absorption

Holes: Sealed with a polymeric film that punctures when used, allowing the full depth of the breadboard to be used.  Accidental spills would be contained inside the exposed 3/8”x2” honeycomb cells and easily removed with a stiff tip syringe.

Self damping side panels

Rounded corners are standard on our product.
